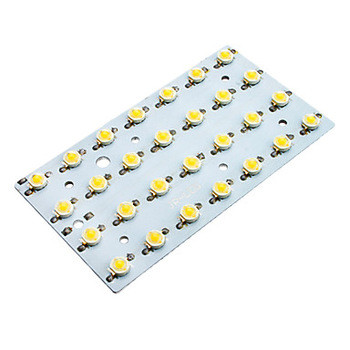

Led Lights Aluminium PCB PCBA Thickness1.6mm DC500V 80W Power Sold Mask White

Huaswin Electronics Co.,Limited

Led Lights Aluminium PCB PCBA Thickness1.6mm DC500V 80W Power Sold Mask White

  • 1
  • 2
  • 3

Brand Name : HUASWIN

Model Number : HSALPCB1638

Certification : ROHS CE

Place of Origin : China

MOQ : 1 sets

Price : Negotiation

Payment Terms : T/T, Western Union, L/C

Supply Ability : 10,000pcs per month

Delivery Time : 15-20 working days

Packaging Details : Anti-static bag + Anti-static bubble wrap + Good quality carton box

Material : Alluminium

DC : 220V

Stype : Light Strips

PCB Color : White

Board Thickness : 1.6mm

Contact Now

Aluminium PCB PCBA Led Lights Alluminium Material Thickness1.6mm DC500V 80W Power Sold Mask White For Outside Indoor Use

PCBAPCB+components sourcing+assembly+package
Assembly detailsSMT and Thru-hole, ISO SMT and DIP lines
Lead TimePrototype: 15 work days. Mass order: 20~25 work days
Testing on productsFlying Probe Test, X-ray Inspection, AOI Test, Functional test
QuantityMin quantity: 1pcs. Prototype, small order, mass order, all OK
Files neededPCB: Gerber files(CAM, PCB, PCBDOC)
Components: Bill of Materials(BOM list)
Assembly: Pick-N-Place file
PCB Panel SizeMin size: 0.25*0.25 inches(6*6mm)
Max size: 20*20 inches(500*500mm)
PCB Solder TypeWater Soluble Solder Paste, RoHS lead free
Components detailsPassive Down to 0201 size
BGA and VFBGA
Leadless Chip Carriers/CSP
Double-sided SMT Assembly
Fine Pitch to 0.8mils
BGA Repair and Reball
Part Removal and Replacement
Component packageCut Tape,Tube,Reels,Loose Parts
PCB assembly
process
Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing

Specification

1. Surface Treatment ---- HASL,Flash gold Immersion Gold/Nickle,OSP
2. Number of Layer ----- Single Sided , Two-sided and multilayer ,Special layer
3. Max. PCB Size ----- 600mm×500mm
4. PCB Thickness ----- 0.5-5.0mm
5. Copper Foil Thickness ----- H 1 2 3 4 6 10 (oz)
6. Insulating Layer Thickness ----- 50 75 100 125 150 (um)
7. Metal Base Type ----- Al (1100,5052,6061),Cu, Fe, Stainless Steel etc.
8. Metal Substrate ----- 0.5 0.8 1.0 1.2 1.5 2.0 3.0 3.2 (mm)
9. Shaping ----- Die PunchingStampingRouteV-Cut
10.Solder Mask Colour ----- GreenWhiteBlackRedYellow
11. The Minimum Letter Height ----- 0.8 (mm)
12. The Minimum Letter Line Width ----- 0.15 (mm)
13.The Minimum Line Width ----- 0.15 (mm)
14. The Minimum Line Spacing ----- 0.15 (mm)
15. The Minimum Hole Diameter ----- 0.5 (mm)
16. Special hole ----- Spot facing, ,cup hole
17. File Format ----- Gerberprotelpowerpcbactocad

Led Lights Aluminium PCB PCBA Thickness1.6mm DC500V 80W Power Sold Mask White

Led Lights Aluminium PCB PCBA Thickness1.6mm DC500V 80W Power Sold Mask White

Led Lights Aluminium PCB PCBA Thickness1.6mm DC500V 80W Power Sold Mask White

Led Lights Aluminium PCB PCBA Thickness1.6mm DC500V 80W Power Sold Mask White

Features:

1. High quality products, Europoean and US standard
2. 3528 or 5050 SMD LED adopted,high brightness ,stable performance.
3. long lifetime,5% attenuation after 2500 hours,life time is 80000-100000 hours
4. Energy saving and environmental friendly.
5. 5m/rell is the standard package,but the size can be customized
6. Various of LED density optional, e.g.30LEDs/M,60LEDs/M,96LEDs/M. etc.
7. Each unit of 3LEDs can be cut out at regular segments.
8. White, warm white,red,green,blue and yellow color and RGB available.


Applications

1. Indoor out door decoration.
2. Architectural and boutique atmosphere lighting.
3. Back, concealed , channel letter lighting.
4. Emergency & security, advertisement sign lighting.
5. Holiday Decoration.


Shiping method:

1) By DHL, Fedex, UPS, TNT etc.
2) By sea if it is possible
3) By air

  • Quote requirement:
    • Gerber file of the bare PCB board
    • BOM (bill of material) for assembly
    • To short the lead time, please kindly advise us if there is any acceptable components
    • substitution
    • Testing guide and test fixtures if necessary
    • Programming files and programming tool if necessary
    • Schematic if necessary
  • OEM/ODM/EMS services for PCBA:
    • PCBA, PCB assembly: SMT, PTH and BGA
    • PCBA and enclosure design
    • Components sourcing and purchasing
    • Quick prototyping
    • Plastic injection molding
    • Metal sheet stamping
    • Final assembly
    • Test: AOI, in-circuit test (ICT), functional test (FCT)
    • Custom clearance for material importing and product exporting
  • Type of assembly:
    • THD (thru-hole device)/conventional
    • SMT (surface-mount technology)
    • SMT and THD mixed
    • Double-sided SMT and/or THD assembly
  • Order quantity: 1 to 100pcs
  • Components:
    • Passives, smallest size 0201
    • Fine pitch to 08 Mils
    • Leadless chip carriers/BGA, VFBGA, FPGA and DFN
    • Connectors and terminals
  • Component packaging:
    • Reels
    • Cut tape
    • Tube
    • Loose parts
  • Board dimensions:
    • Smallest size: 0.25 x 0.25 inch/6 x 6mm
    • Largest size: 15.75 x 13.5 inches/400 x 340mm
  • Board shape:
    • Rectangular
    • Round
    • Slots
    • Cutouts
    • Complex
    • Irregular
  • Board type:
    • Rigid
    • Flexible
    • Rigid-flexible
  • Solder type:
    • Leaded and lead-free
    • Water soluble solder paste
    • Manual soldering for special parts, such as wires and temperature sensitive parts
  • Design file format:
    • Gerber RS-274X, 274D, Eagle and AutoCAD’s DXF, DWG
    • BOM (bill of materials)
    • Pick and place file (XYRS)
  • Advantages:
    • Turnkey manufacturing or quick-turn prototypes
    • Board-level assembly or complete system integration
    • Low-volume or mixed-technology assembly for PCBA
    • Even consignment production
    • Supported capabilities





















































Product Tags:

Led Lighting PCB



Aluminium Circuit Board
